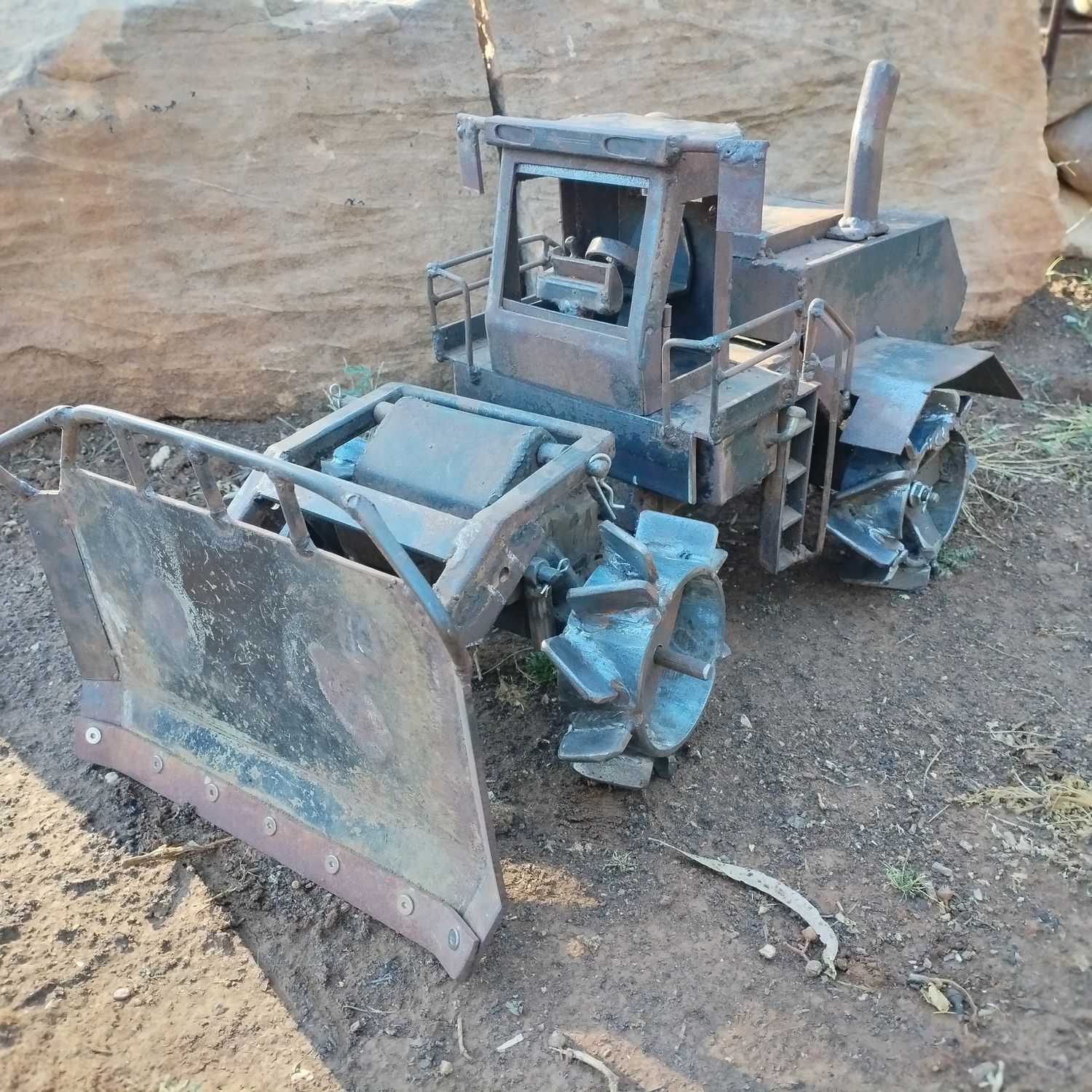

LF938sw Articulated Wheel Dozer
$49.95
New!
In stock
Product Details
LEVEL 3: ADVANCED MECHANICAL FABRICATION BUILD
Challenge Your Craft. Build an Industrial Legend.
Stop wasting shop time on simple welding projects. It is time to test your skill limits and fabricate a museum-quality powerhouse. The LF938sw Articulated Wheel Dozer is a massive, heavy-duty scale steel model engineered specifically for advanced garage fabricators, experienced welding hobbyists, and side-hustle metalworkers.
When finished, this heavy industrial sculpture commands total attention, serving as a massive display piece loaded with intricate moving parts, realistic engine mechanics, and aggressive styling.
Best of all? Your purchase includes a full commercial-use license. Build it for the pure thrill of the craft, or fabricate and sell the finished physical steel models to collectors, heavy equipment fans, or local businesses and keep 100% of the profits. Zero royalties. Zero corporate red tape.
The Machine: Industrial Scale & Real Mechanical MovementThis is a rugged steel machine engineered for serious shop fabrication using standard tools like angle grinders, drills, and your welding rig.Monolithic Proportions: A true workbench titan measuring a massive 575mm long and standing 275mm tall.Massive 270mm Push Blade: Equipped with an ultra-wide, reinforced front blade designed with realistic wear-plates and structural ribbing.Functional Articulated Steering: Built around a central pivoting chassis layout, featuring realistic dual steering cylinders that smoothly articulate the machine frame.Working Blade Hydraulics: Fully operational manual lift cylinder linkages allow you to raise anf the front blade mechanism.Fabricated Steel Deep-Lug Wheels: Step-by-step schematics show you how to weld custom, aggressive deep-tread steel wheels featuring functional locking pins and rugged heavy-duty hubs.Intricate 6-Cylinder Engine: Features a meticulously detailed, multi-piece fabricated inline engine block that sits proudly in the rear bay.
Inside the Massive 84-Page Blueprint Pack
We don't cut corners, and we don't do AI generation. This massive, premium blueprint set is 100% human-designed, drafted, and workshop-tested by an experienced builder to ensure every single cut line fits perfectly.Zero Material Guesswork: Exact steel sheet thicknesses and material specifications are clearly called out right inside the manual. You buy only what you need.Pro-Tier Workshop "Tips": Packed with specific tips and tricks derived from real-world build tests. Learn the optimal setup, clamping, and welding sequences to avoid warping heavy steel components.Detailed Technical Explanations: Complex steps don't just show the parts; they explain the assembly mechanics. Perfect for dialing in the articulated chassis pivot and manual cylinder linkages smoothly.Comprehensive Component Breakdowns: Crystal-clear visual schematics for the intricate cabin framework, multi-piece engine block, pivot joints, and custom wheel assemblies.Instant Workshop Access: Download instantly in high-resolution, print-ready PDF format. Keep it clean on your tablet at the welding bench or print out the exact pages you need for the floor.
🛠️ 100% Original TMG Engineering
Please Note: Our models are not replicas or scale copies of any commercial heavy equipment manufacturer. Every blueprint in the TMG catalog is an original, proprietary design engineered completely from the ground up. Every individual piece, bracket, and linkage is custom-drafted to deliver a unique, rugged, scratch-built fabrication experience found nowhere else.
